5517 client source reconstruction

[0xpanadol]

I've been working for this for almost 3 weeks, completed most of the dlls and some major exe functions, ignored the network completly for now (I'll rebuild the whole network for both client and server in my own logic later)



https://www.youtube.com/watch?v=L2E-BuXChAw

Edited April 2 by 0xpanadol

[Airplist]

good job

[kennylovecode]

On 4/3/2026 at 9:00 AM, Airplist said:

good job

good guilao job!



[xFranko]

that's amazing!!

[0xpanadol]

New updates with GUI and character render pipeline (still alpha though)


https://www.youtube.com/watch?v=0sqabpfj5k4

[Airplist]

good job

[0xpanadol]

- More improvements in movements/jump

- More improvements in character pipeline

- Sounds with map sounds



https://www.youtube.com/watch?v=h3jovijSfFU

[xFranko]

I'm curious how did you reverse the dlls ? are you using IDA?

Edited Sunday at 10:44 AM by xFranko

[kennylovecode]

It should not reverse, but directly use the previously released C3SDK.

Of course, this is my guess.

Edited Sunday at 06:51 AM by kennylovecode

[xFranko]

3 hours ago, kennylovecode said:

It should not reverse, but directly use the previously released C3SDK.

Of course, this is my guess.

Hmm where are those released ?

[kennylovecode]

31 minutes ago, xFranko said:

Hmm where are those released ?

I think there should be a clone on github. You can search it.

Edited Sunday at 11:14 AM by kennylovecode

[0xpanadol]

10 hours ago, xFranko said:

I'm curious how did you reverse the dlls ? are you using IDA?

Yeah, not just SDK as kenny said
everything is being reconstructed

[0xpanadol]

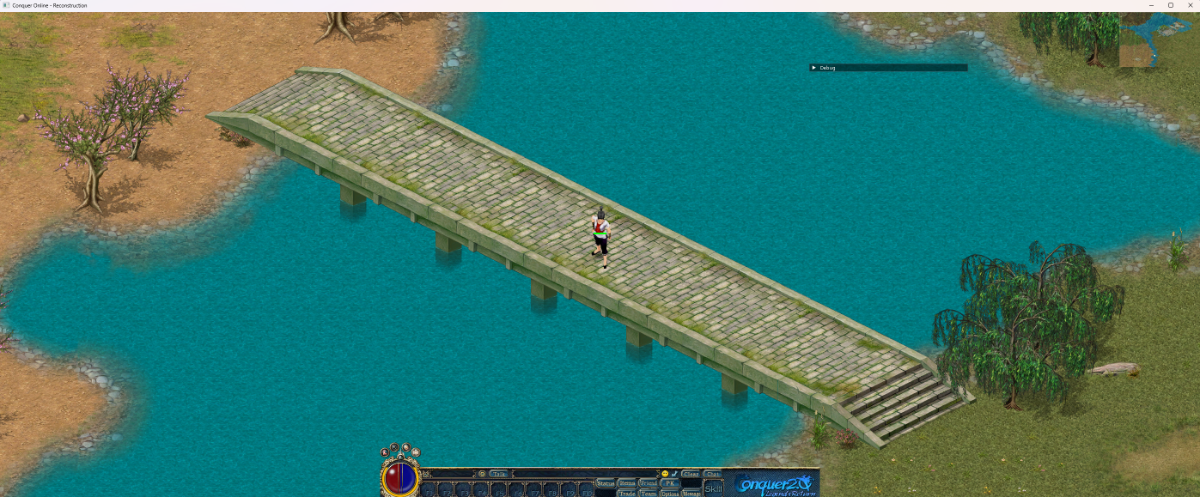

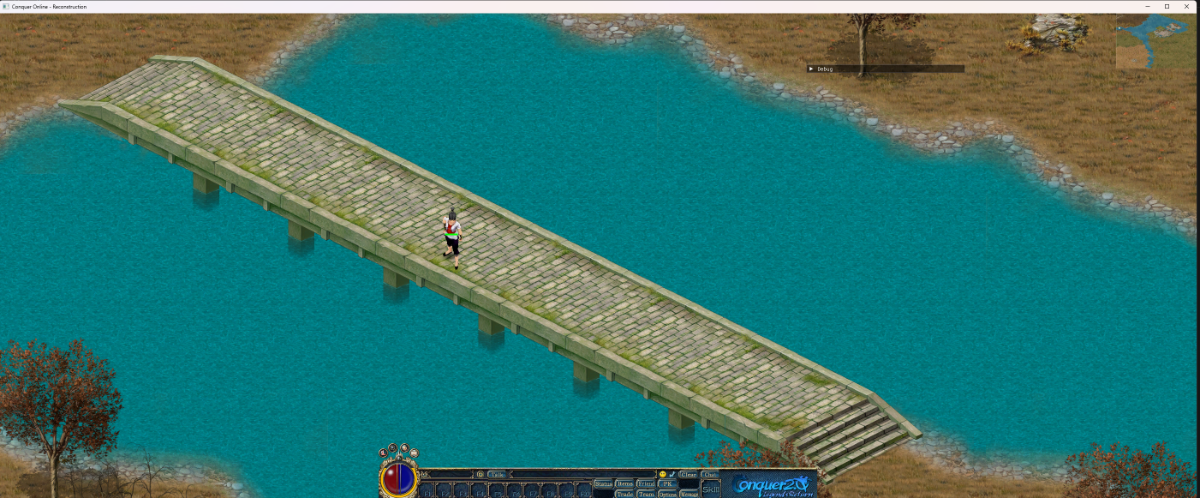

Bridges

[xFranko]

1 hour ago, 0xpanadol said:

Yeah, not just SDK as kenny said
everything is being reconstructed

did you use ENV_DX9/Conquer.exe as you dll entry point and looked at the external dll imports going from there to see the flow? Because I am currently trying to reverse it so might benefit from your experience

Edited Sunday at 01:15 PM by xFranko

[0xpanadol]

36 minutes ago, xFranko said:

did you use ENV_DX9/Conquer.exe as you dll entry point and looked at the external dll imports going from there to see the flow? Because I am currently trying to reverse it so might benefit from your experience

Yes and no

i did use the exe's decompiled output and its imports/exports/xrefs as a starting point to understand the overall architecture, but rather than purely tracing imports live from a running exe i worked from static analysis, Ghidra and Binary Ninja decompilation of both the exe and each individual DLL.

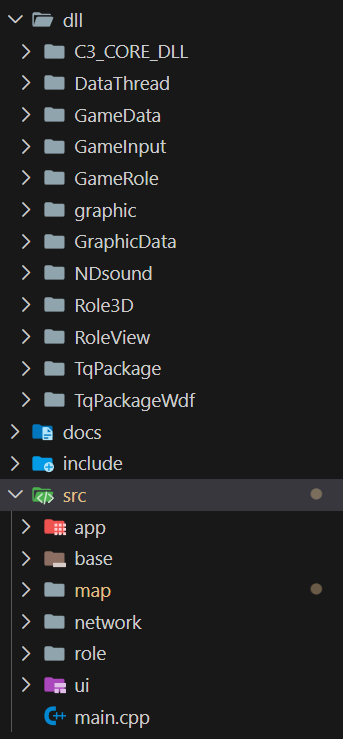

then built a dependency order that maps which DLLs depend on which, so reconstructed bottom-up foundational DLLs first (like graphic.dll, GraphicData.dll) before higher-level ones (like Role3D.dll, RoleView.dll)

it was so hard at the beginning but when you have working peaces it's only fixing bugs, and fine tuning what already built. and i gave myself some time to make sure all major dll files are reconstructed and made some tools to test the builds with game client files and folder before implementing these on the actual reconstructed exe.

[xFranko]

10 minutes ago, 0xpanadol said:

Yes and no

i did use the exe's decompiled output and its imports/exports/xrefs as a starting point to understand the overall architecture, but rather than purely tracing imports live from a running exe i worked from static analysis, Ghidra and Binary Ninja decompilation of both the exe and each individual DLL.

then built a dependency order that maps which DLLs depend on which, so reconstructed bottom-up foundational DLLs first (like graphic.dll, GraphicData.dll) before higher-level ones (like Role3D.dll, RoleView.dll)

it was so hard at the beginning but when you have working peaces it's only fixing bugs, and fine tuning what already built. and i gave myself some time to make sure all major dll files are reconstructed and made some tools to test the builds with game client files and folder before implementing these on the actual reconstructed exe.

Thank you, that helps a lot!  Goodluck with the rest of scope!

[0xpanadol]

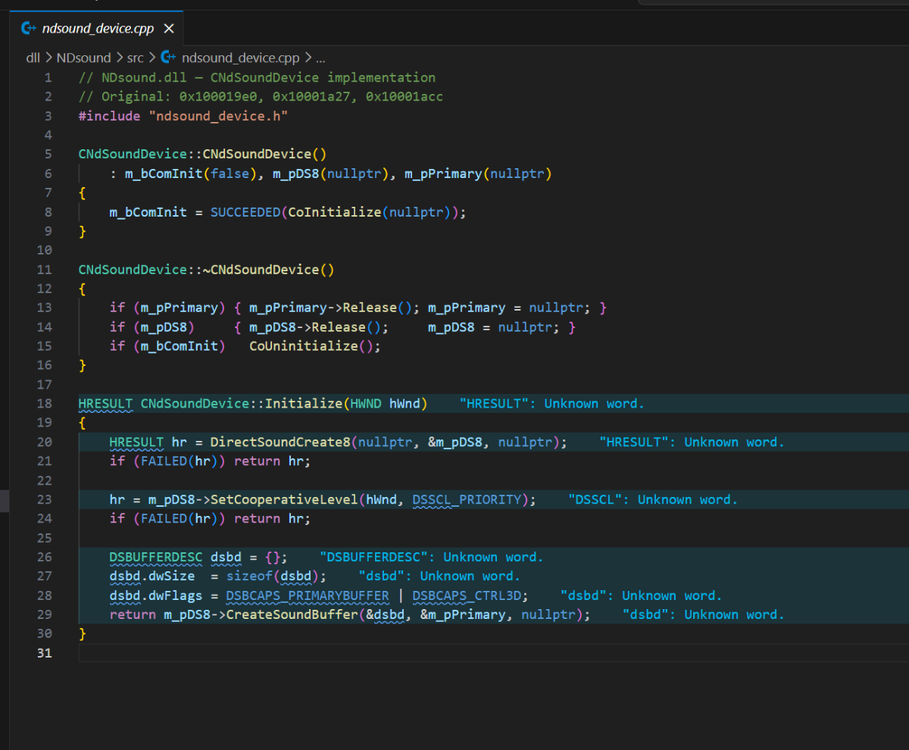

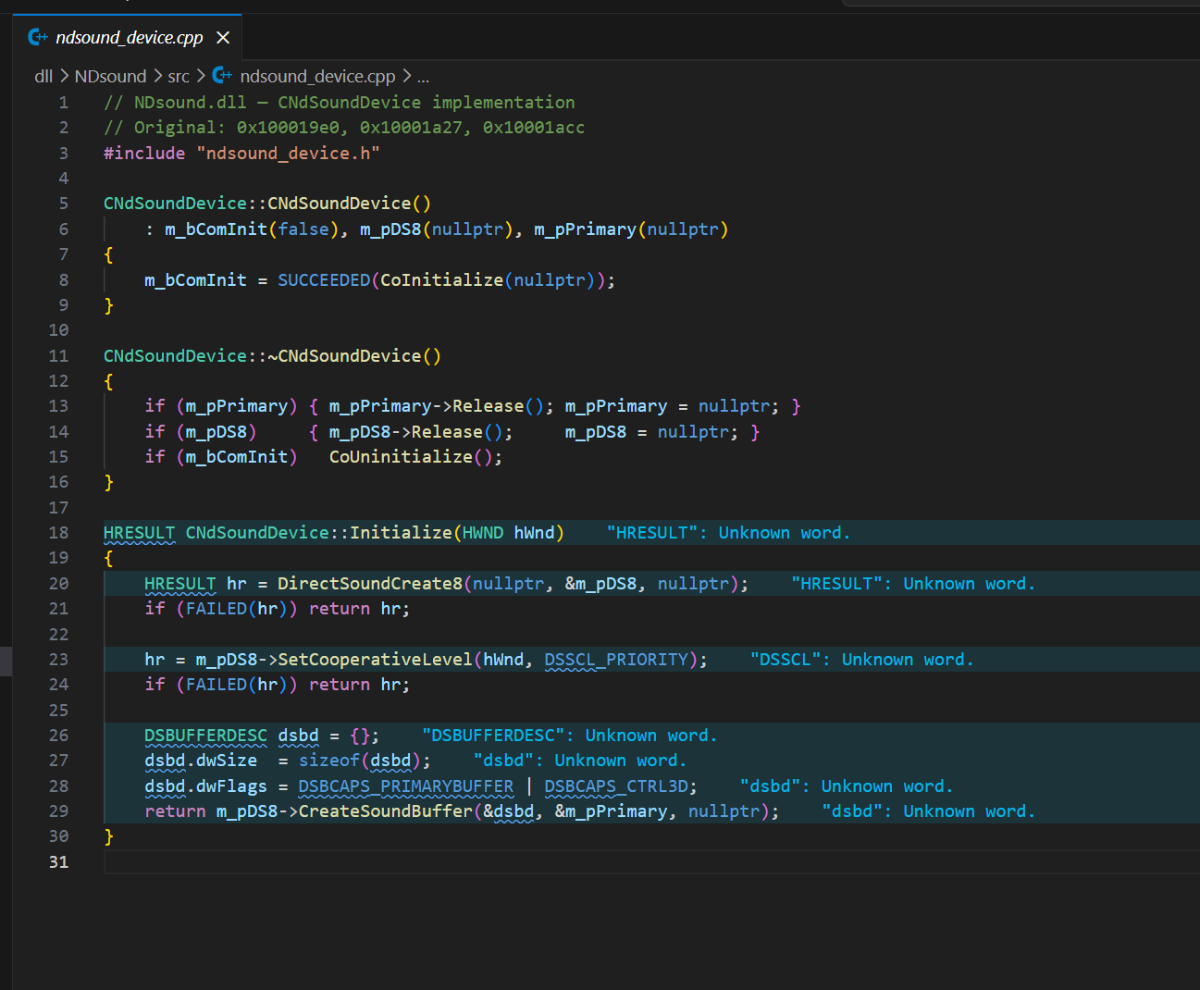

- Replaced the old DirectSound engine with miniaudio
- Refactor the whole sound system and core to better and modern logic
- Made sure music, sounds are working
- Implement a basic effect audio
- Modified client structure to keep every dll and the main exe inside bin/64 folder same as the classic conquer one doing

https://www.youtube.com/watch?v=7hCeIpIWEM0

Edited Sunday at 04:51 PM by 0xpanadol

[0xpanadol]

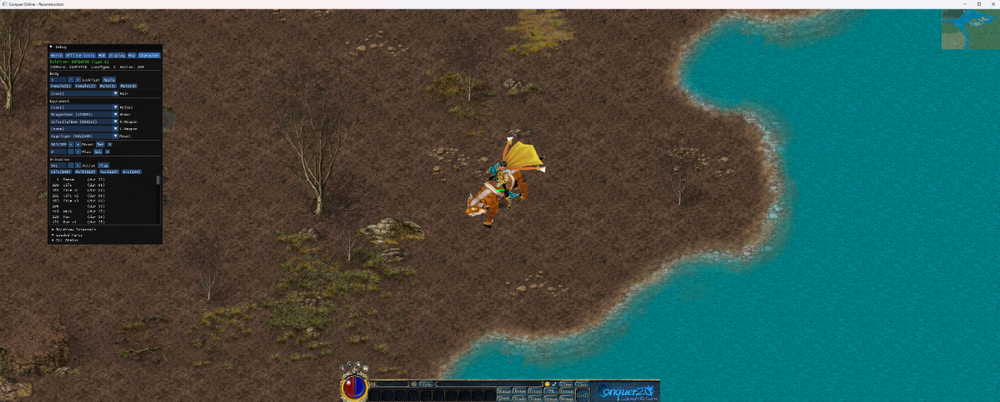

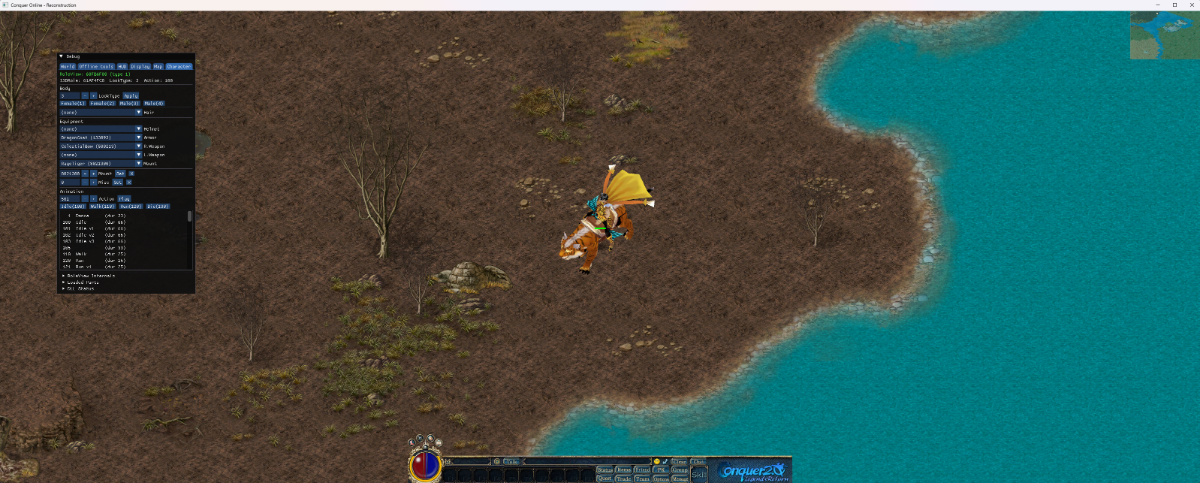

- Many improvements in movement/jump system

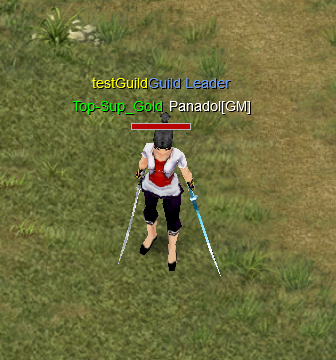

- Off-hand (left hand) motion
- Mount data loading and role part lookup
- Equipments attachments while riding
- More improvements and fixes here and there

https://www.youtube.com/watch?v=6axKZTSFi5A



Edited 15 hours ago by 0xpanadol
